Magnetic green board of multimedia classroom

1、 Specification and material:

The overall dimension is 3800 * 1380mm, and the external dimension after expansion is 5500 * 1380mm.

The panel material is 0.3mm thick matte wear-resistant ink green writing panel.

The back plate material is 0.25mm thick galvanized steel plate.

The lining material is high density EPS, 24mm thick.

The frame material is super wide luxury high strength industrial electrophoresis silver white frosted aluminum alloy frame.

Overall assembly of writing board material: ABS plastic wrap angle, consistent with the frame color, no damage to the appearance panel, no longitudinal edge type, no scratch on aluminum alloy, no color difference, flat structural surface of the plane board.

2、 Push pull device:

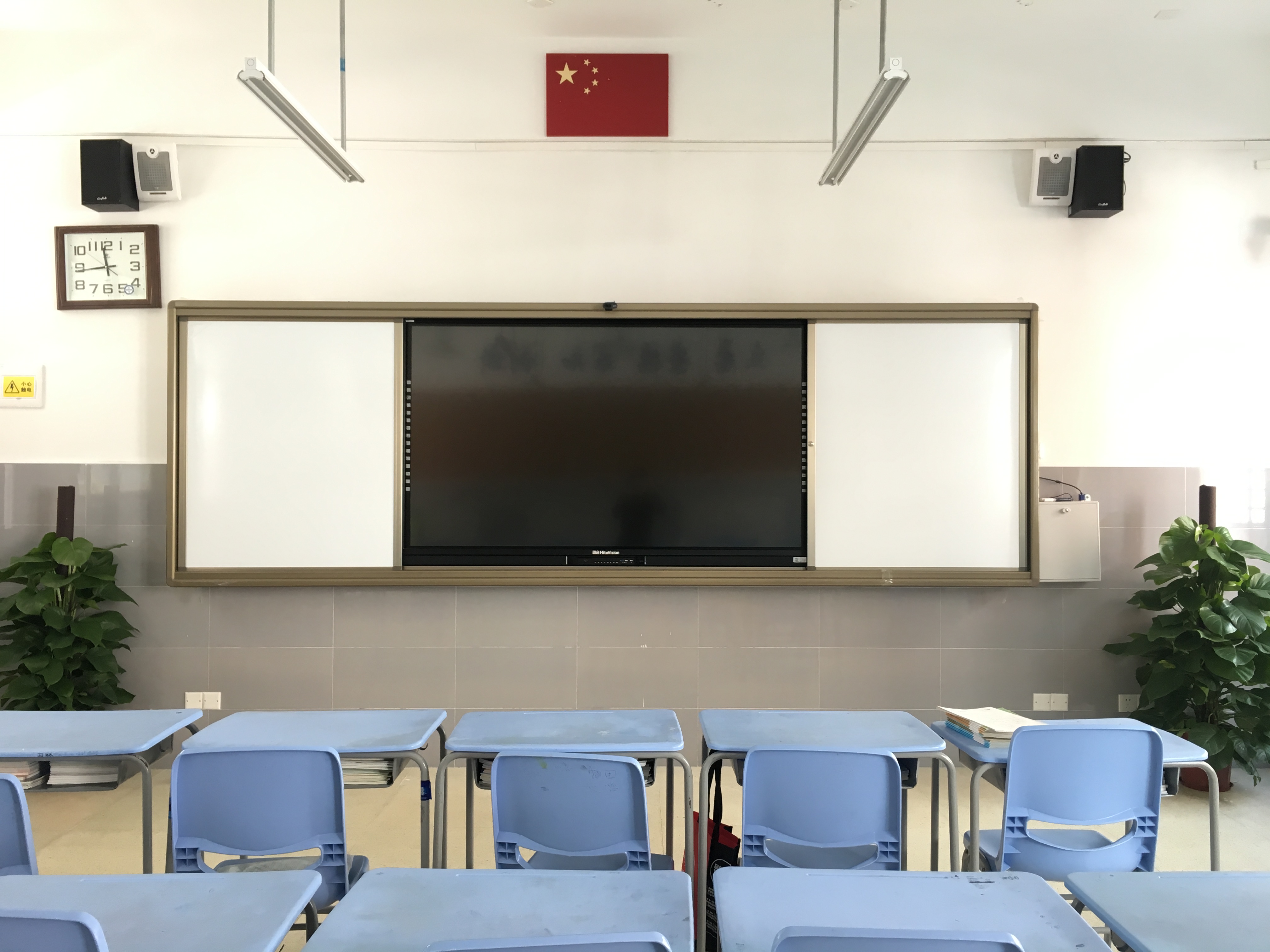

It is composed of two writing boards of the same size. The inner layer is a touch integrated machine (or electronic whiteboard) in the middle of the wall, and the outer layer is two sliding writing boards. When the two boards are combined, the length of the writing surface reaches 380cm. When the touch integrated machine (or electronic whiteboard) is used, the sliding board can be pushed to both sides to expose the touch integrated machine (or electronic whiteboard), The left and right can be extended to the outside of the outer frame, avoiding the combination of four boards, making the whole more beautiful and practical..

The installation adopts invisible installation, without any visible installation parts after installation, so that the overall effect is more beautiful.
